CVT Guard

Anticipated Completion March 2026

Car

  • TG22 (2025 season vehicle)

Materials

  • 6061 Aluminium

  • Carbon Fiber

  • Epoxy

  • 3M® Weatherstrip

Innovations

  • Revised tabs to prevent bending of the guard’s halves

  • Improved adhesive solution that ensures a weatherproof seal

  • Modernized design that compliments our new vehicle’s aesthetics

Summary

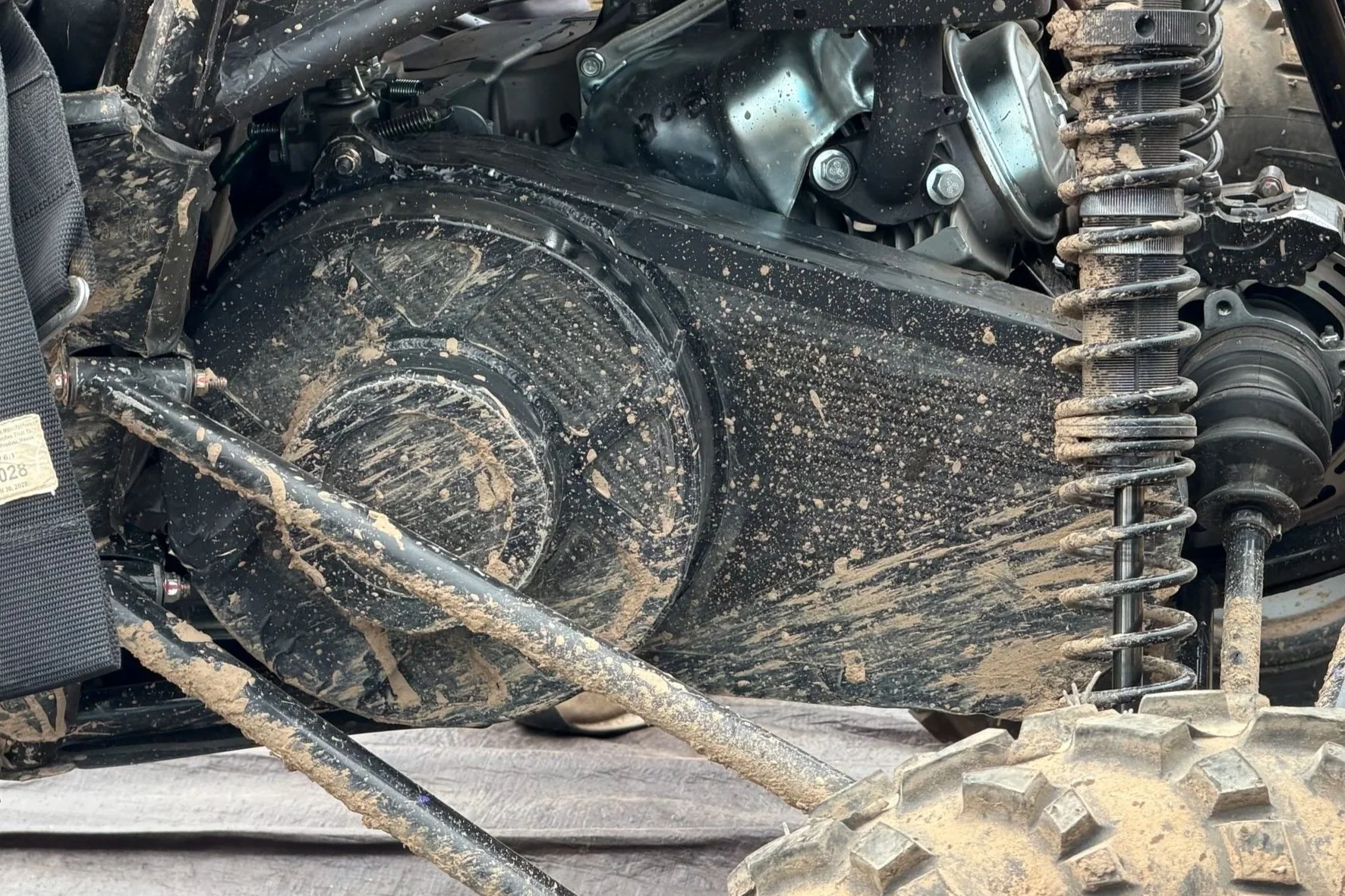

The CVT guard protects the transmission from dirt & debris while offering shielding should any part come loose. The CVT guard is a required part per competition regulations, and there are strict rules as to its construction and dimensions.

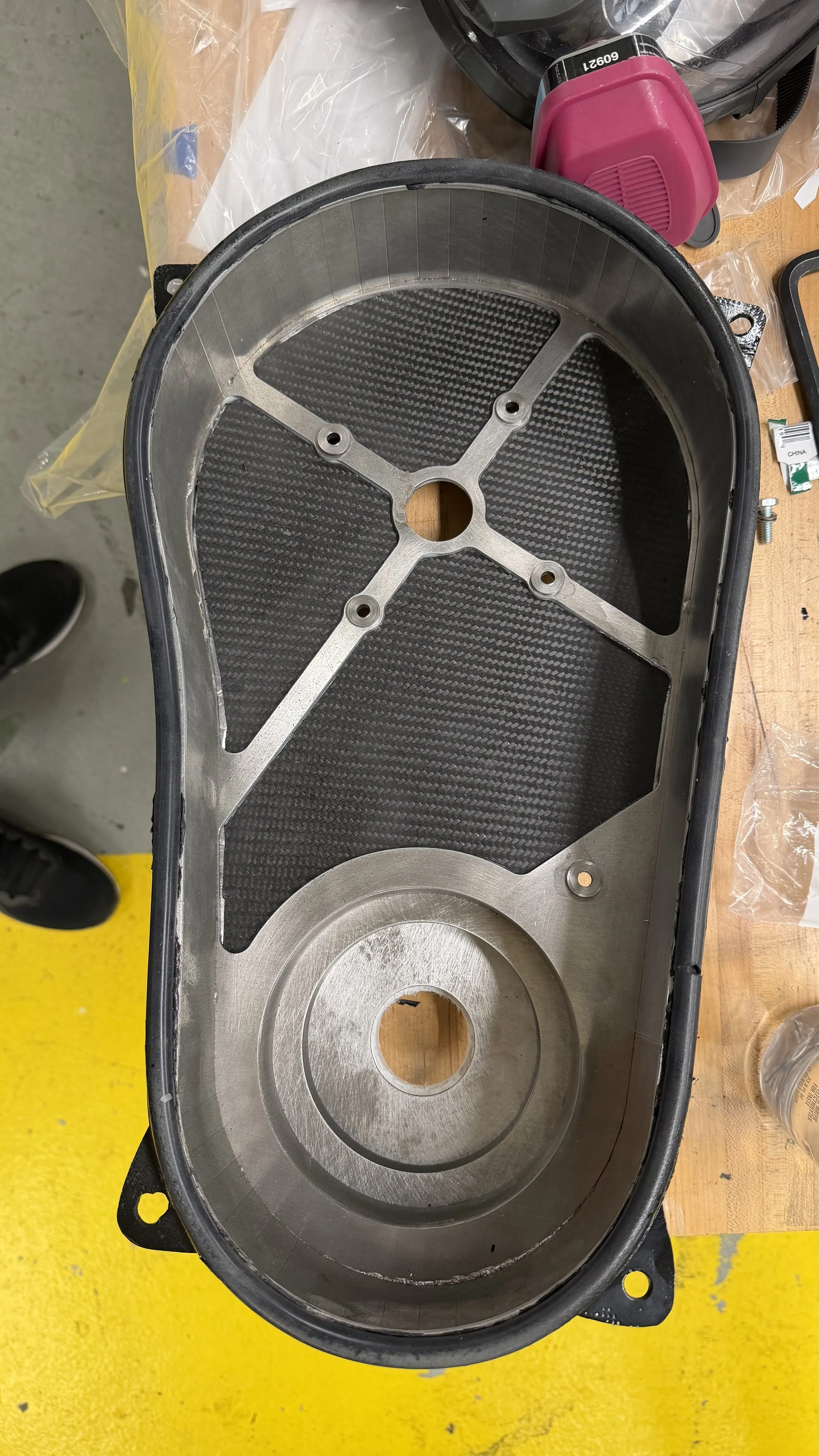

  • Two-part construction featuring a removable outer guard

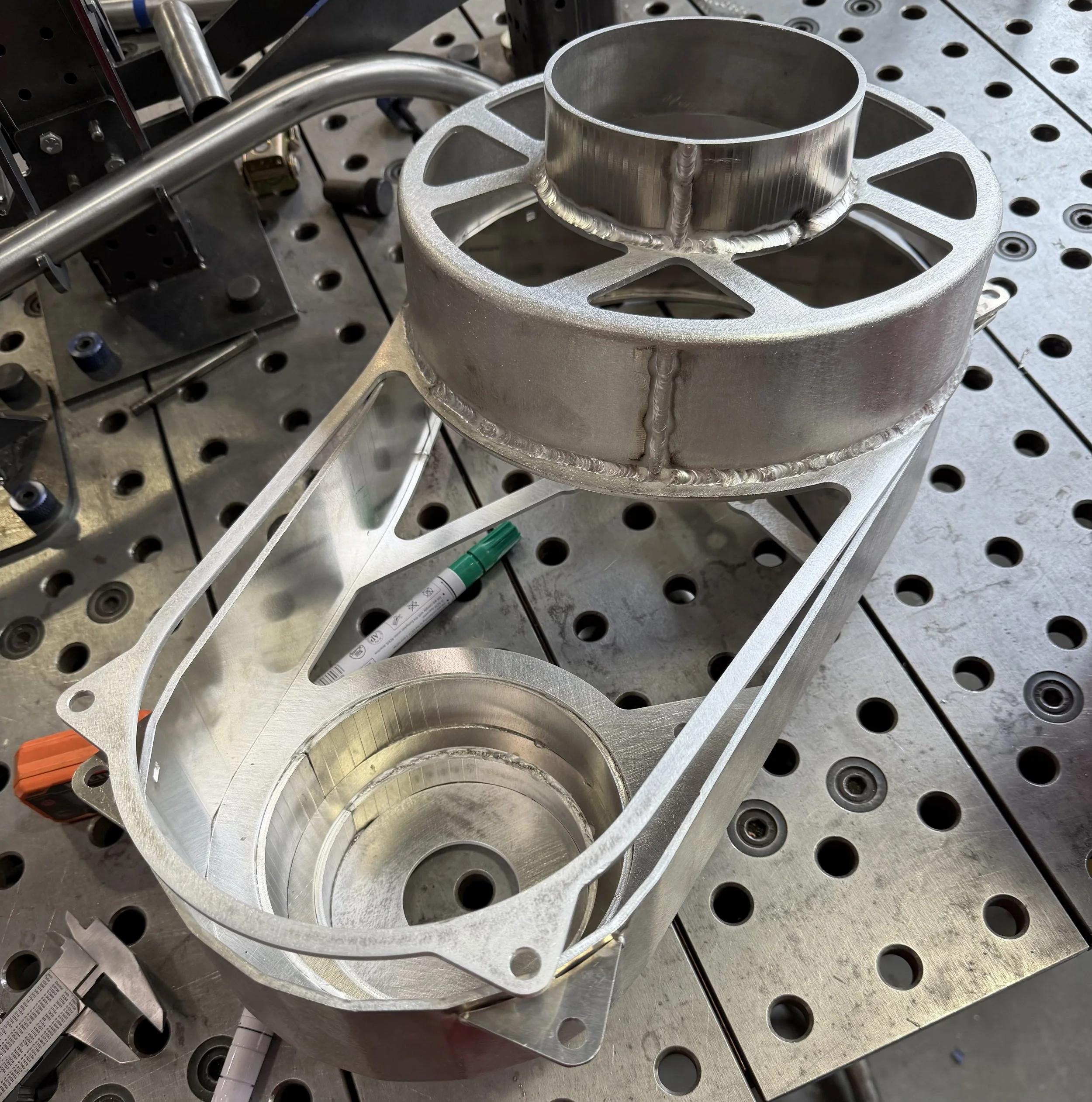

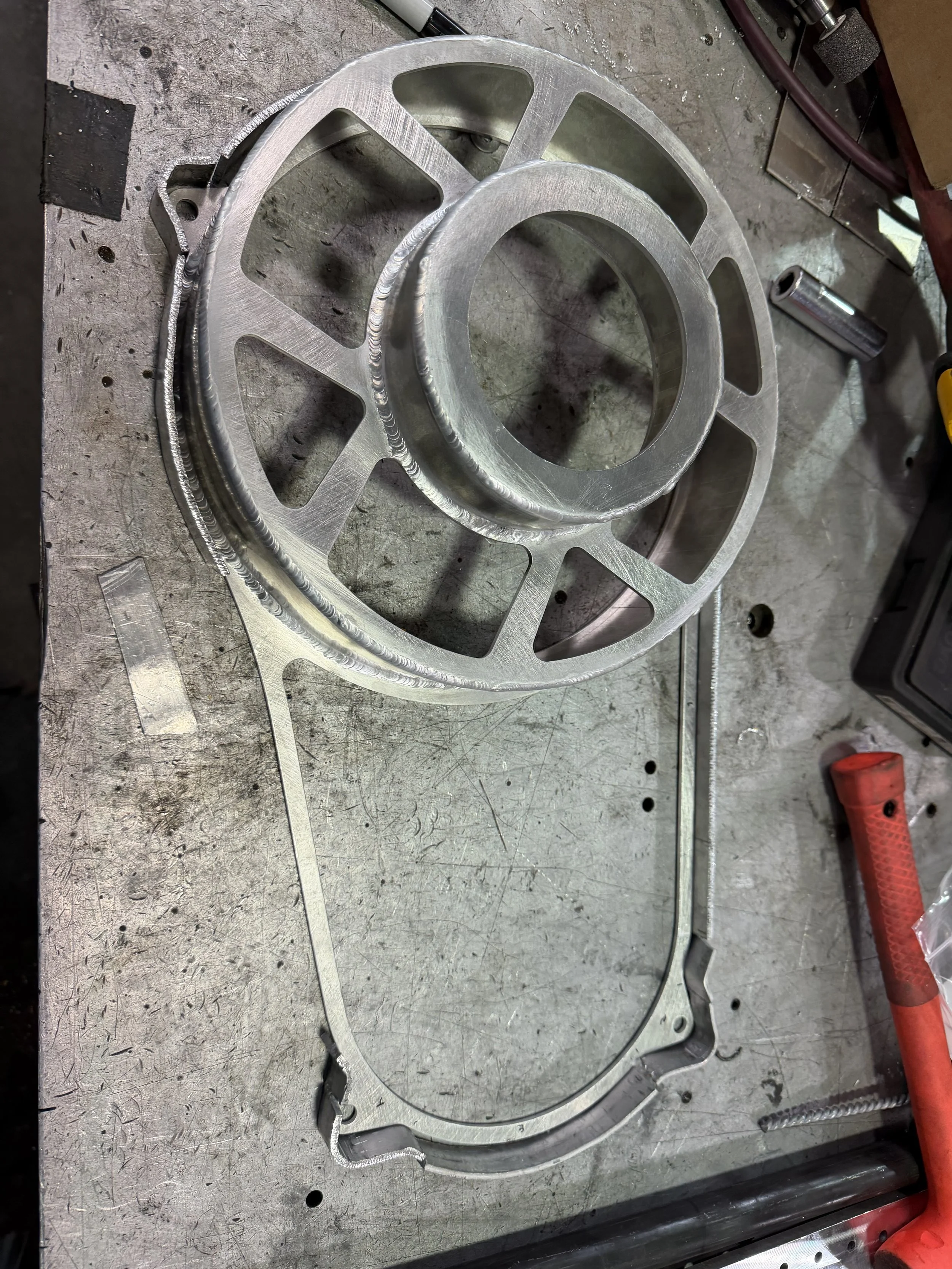

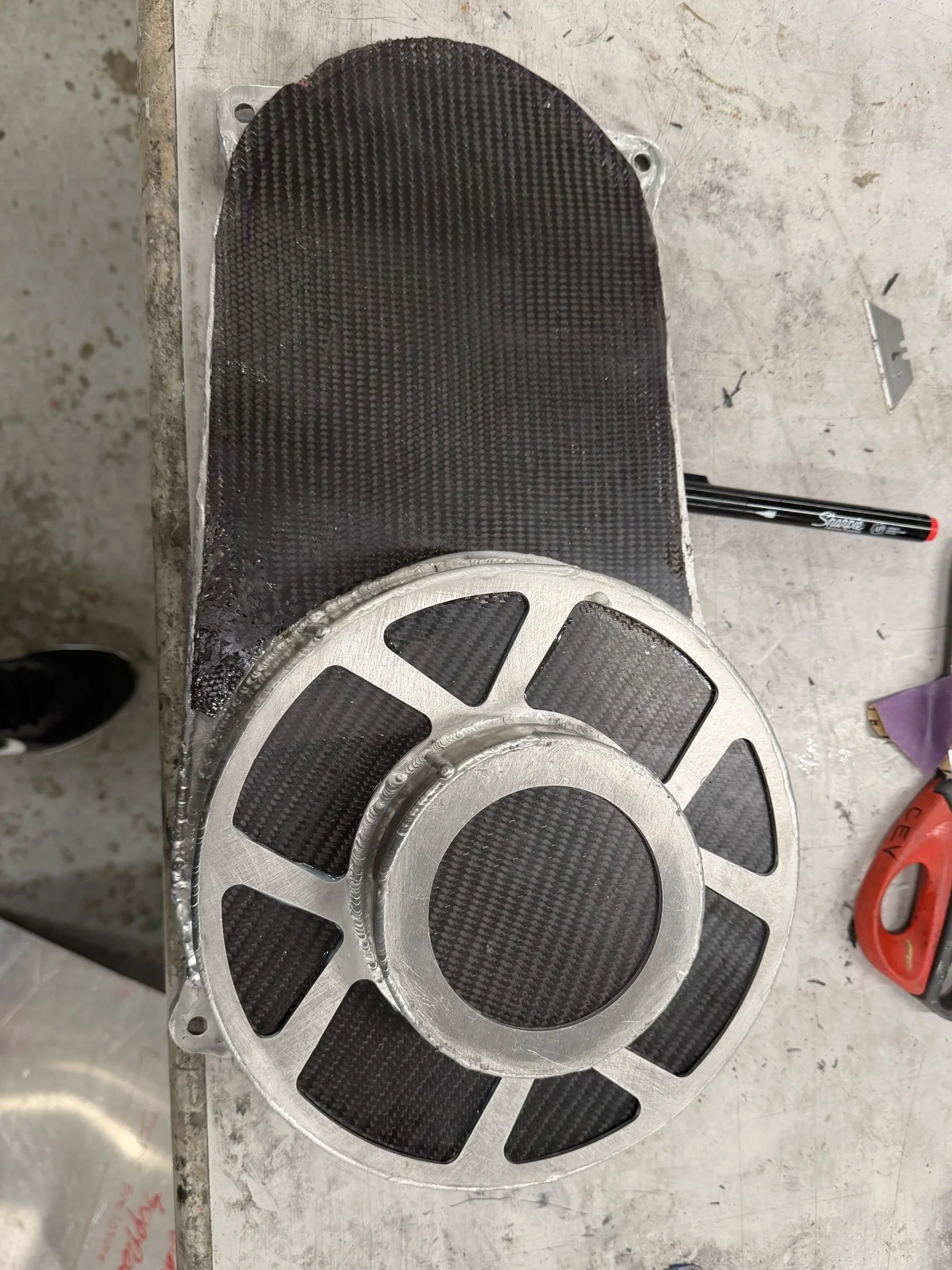

  • Laser-cut and welded aluminum frame

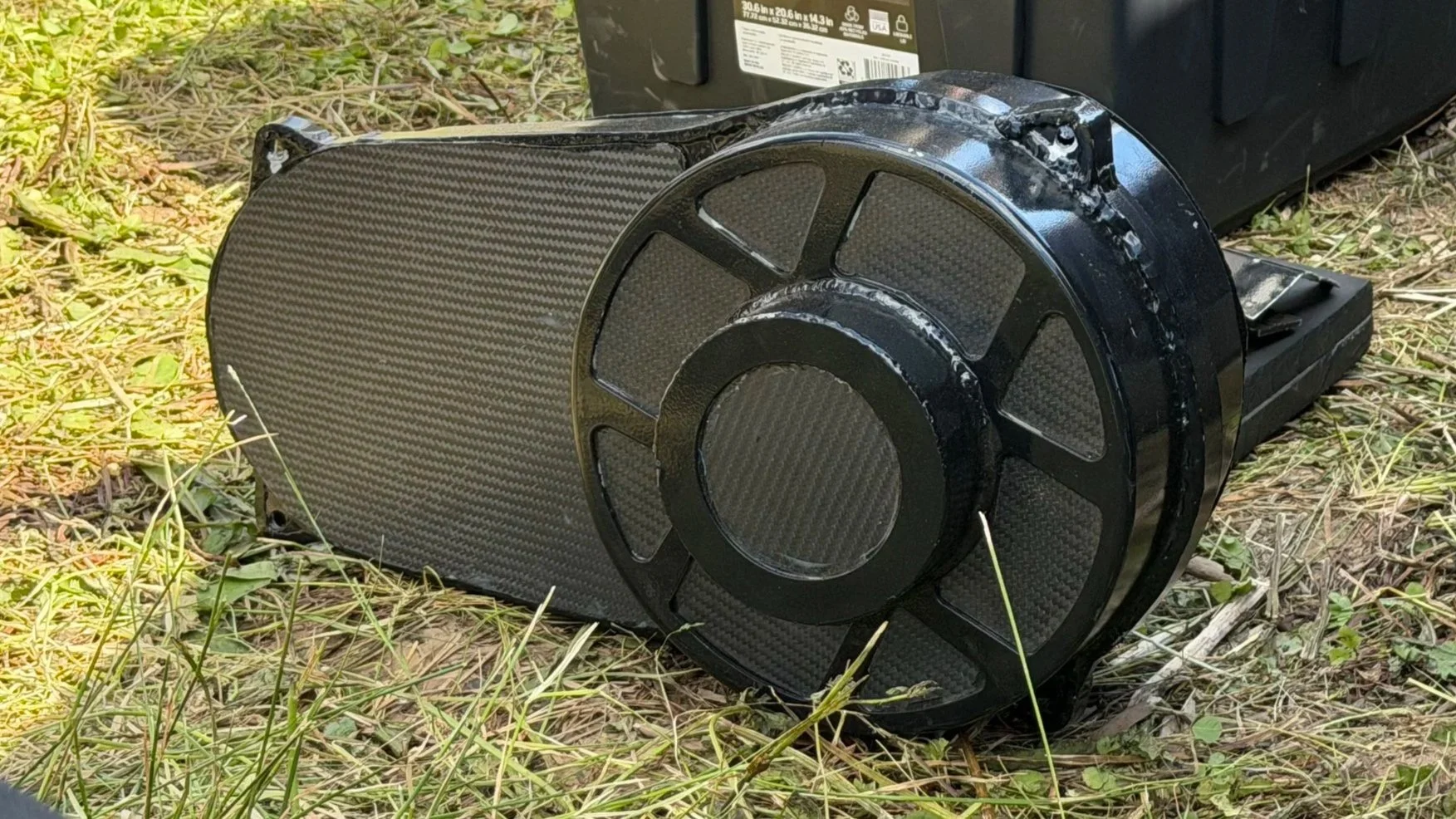

  • In-house carbon fiber wet layup

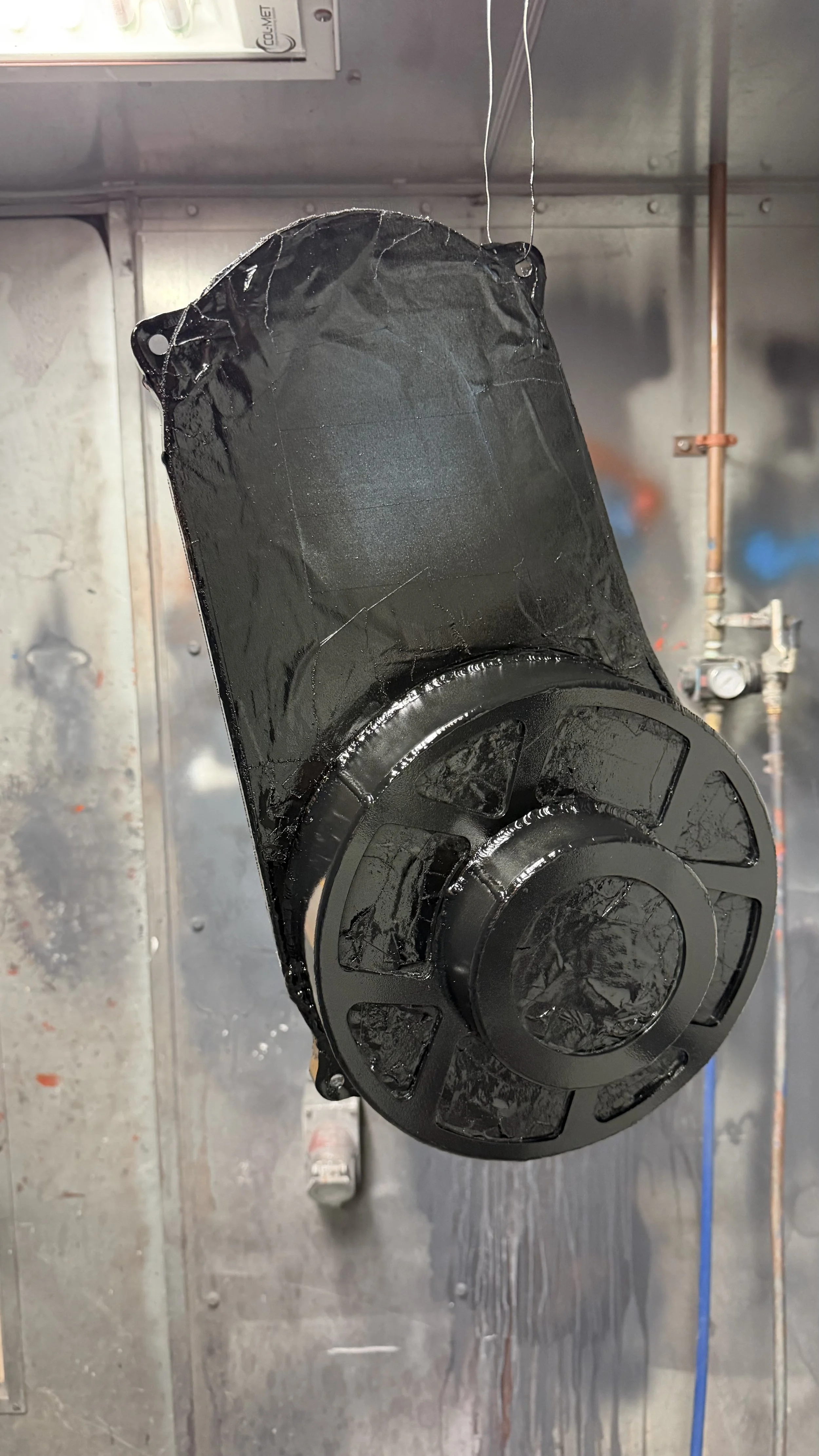

  • Designed to withstand extreme temperatures (>250ºF) and elements

  • Nordlocks and in-house machined steel inserts to prevent against wear and minimize vibrations

Testing & Development

  • Temperature Testing

    In order to determine how temperature dissipation of the transmission should play a role in my design, I placed temperature-sensing stickers along the inside of our previous car’s CVT Guard before it ran at a competition. The data collected guided where I would place ventilation holes, should we make a version of the guard with them.

  • CAD

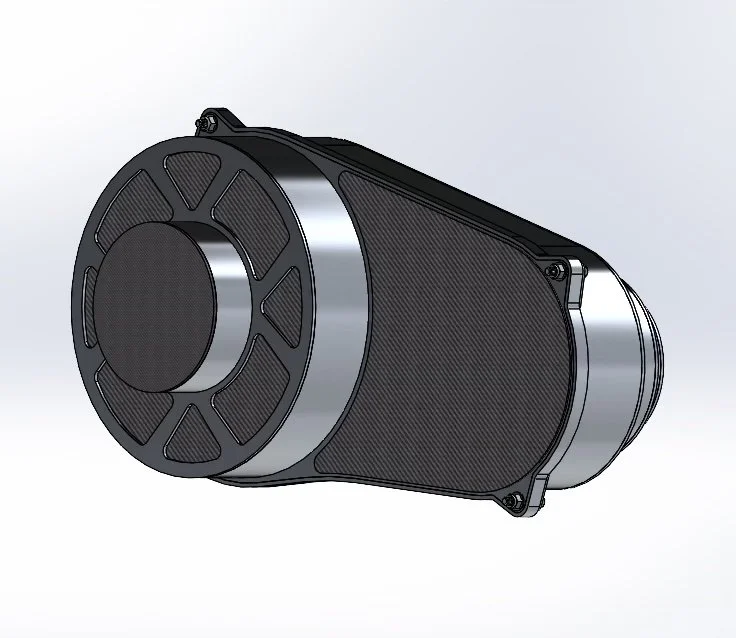

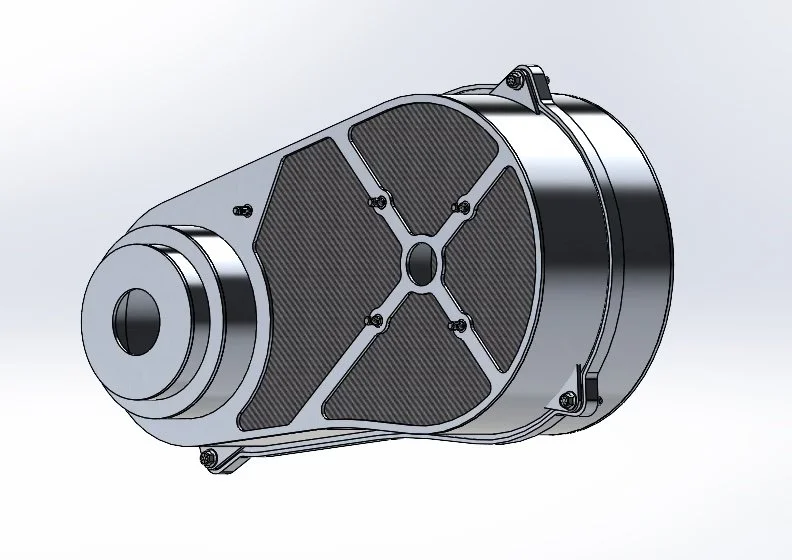

    The finalized CAD as the guard will be produced.
